PhaZair

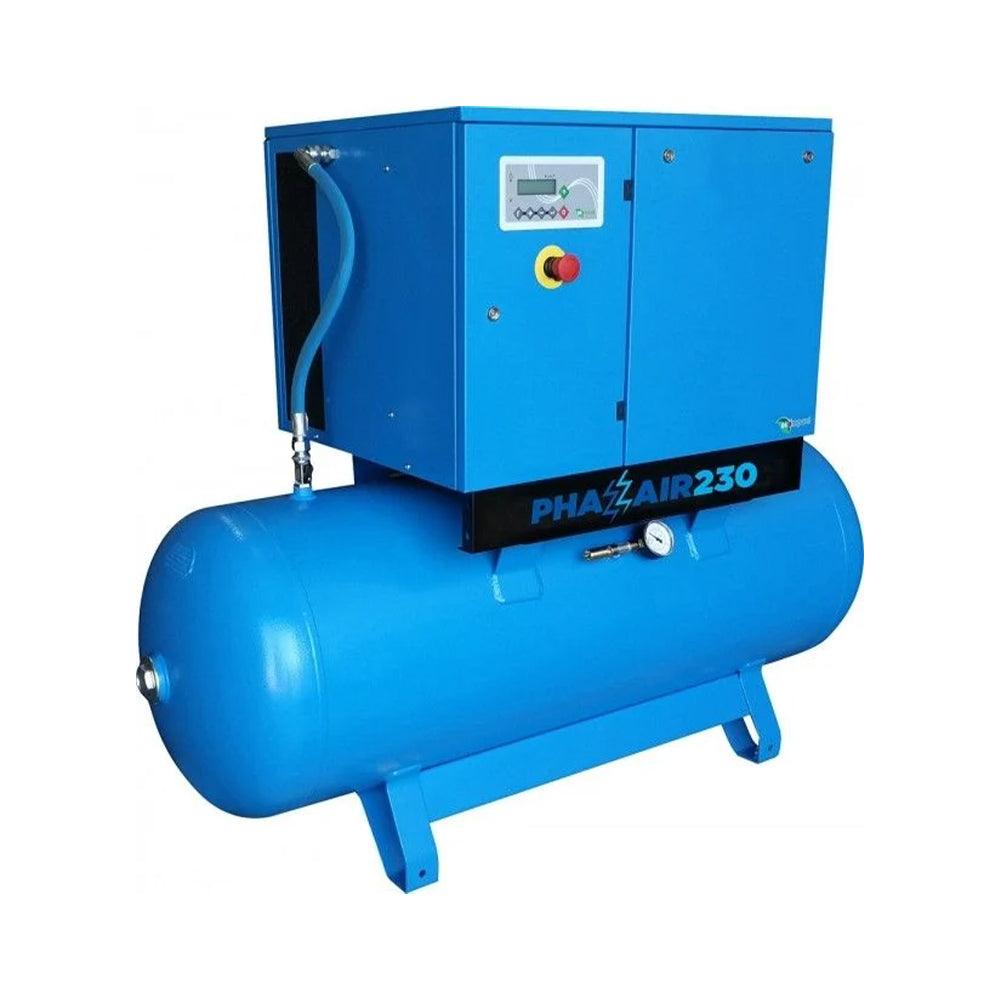

PhaZair-230 5.510-270-VSD Variable Speed Receiver Mounted (c.f.m. - 24, L/min. - 680)
PhaZair-230 5.510-270-VSD Variable Speed Receiver Mounted (c.f.m. - 24, L/min. - 680)
Regular price
£4,866.00
Regular price
£7,724.00
Sale price
£4,866.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HIGHLIGHTS:
Energy saving variable speed systems that are configurable by the user to adopt any power input from 2.2kW up to 5.5kW, proving air capacities up to 27.5 cfm/ 780 l/min FAD
Our new model represents the highest evolution of the PhaZair 230, SINGLE PHASE, 5.508* VSD DF Floor Mounted With Dryer, thanks to the electronic control unit ‘K TRONIC 5’ running all of the compressor functions/indicators: loading/idling cycle, working hours, oil temperature, working pressure, alerts. This is a technological solution to an age old problem, providing a much higher capacity to users limited by a single phase 230V power supply!.
- *40amp Power Supply Required
- Belt driven
- Energy saving variable speed control
- Attractive modern design offering very low noise levels
- Simple to use and maintain, with high levels of safety.
- Inverter Control with load-unload cycle
- FAD air capacity from 285 L/min to 780 L/min (10 cfm to 27.52 cfm) @ 8 Bar
- Up to 680L/min at 10 Bar
- Anti-condensation system
- Available Floor Mounted, with 270Lt Air Receiver and with Integrated Dryer
SPECIFICATION
Receiver Size - 270Lt
Volt - 230
kW - 5.5
Hp - 7.5
L/min - 680
c.f.m - 24
Bar - 10
Psi - 145
dB(A) - 69
Product L x W x H (mm) - 1560 x 640 x 1200
Kg - 177
