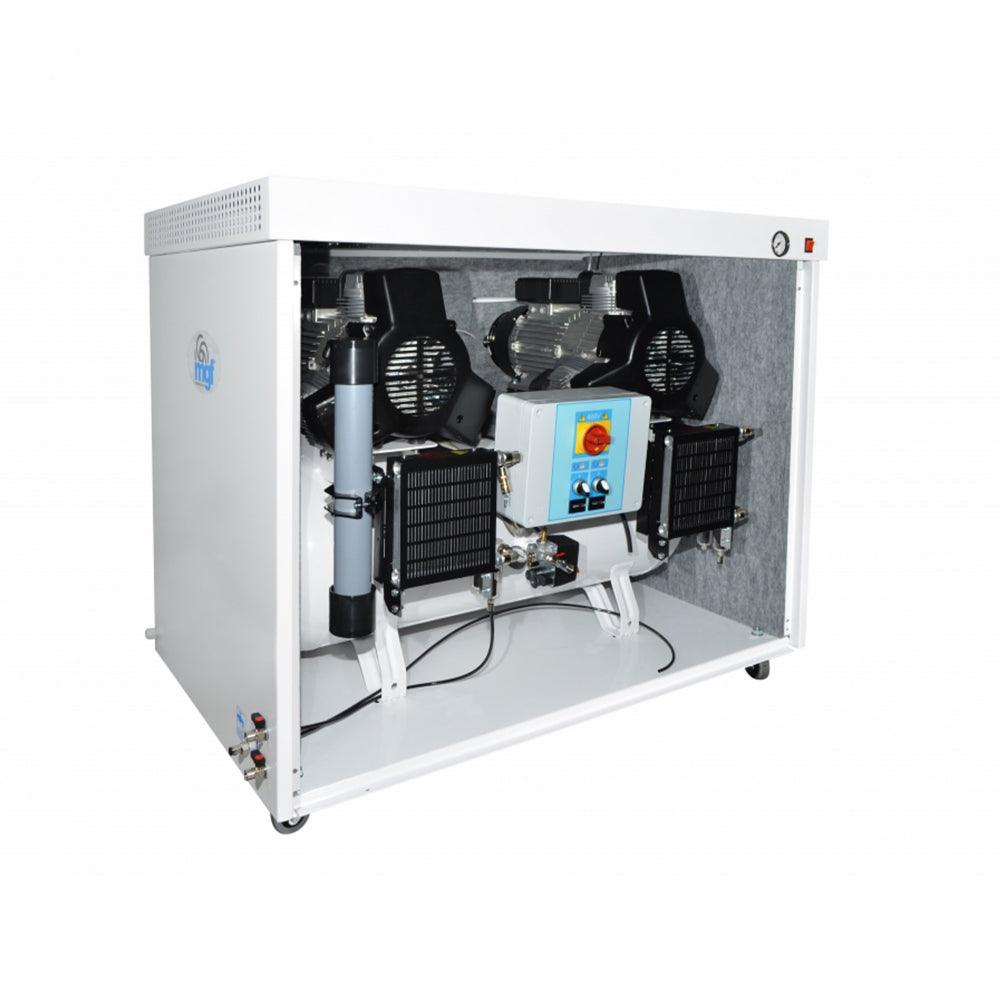

MGF CS100/50 TANDEM PRIME T -X Line - 230V (c.f.m. @5Bar - 25.2, L/min. @5Bar - 720)
MGF CS100/50 TANDEM PRIME T -X Line - 230V (c.f.m. @5Bar - 25.2, L/min. @5Bar - 720)
Regular price
£7,745.50
Regular price
£12,236.00
Sale price
£7,745.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HIGHLIGHTS:
- 10 Bar Pressure - Continuosly Rated
- Designed Specifically for CAD/CAM Milling Machines applications
- Continuously rated output of 240 l/min at 7 Bar
- Oil Free, Cabinet silenced, Membrane Dryer
- Internally Coated Receiver Size - 90Lt
- Integrated membrane dryer guaranteeing a dew point of -20°C at 5 Bar
- ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point, and Zero oil trace
- Suitable for continuously rated applications in dental and university laboratory
- 240 l/min FAD @ 7 Bar
- HTM 2022 compliant (dryer and filtration required)
- All models utilise an after cooler
- Double filtration system providing an air purity of 0.01 microns
SPECIFICATION
Continuous Lt/min @7 Bar - 240
c.f.m @5Bar - 25.2
L/min @5Bar - 720
Hp - 3+3
kW - 2.2+2.2
Bar - 10
Psi - 145
dB(A) - 56
Volt - 230
Receiver Size - 90Lt
Product L x W x H (mm) - 1245 x 725 x 1020
Kg - 221
Open Frame and Silenced ModelsThe unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers. All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 bar providing higher working pressure (8 bar) for general use applications. Air Treatment Features
|
