MGF

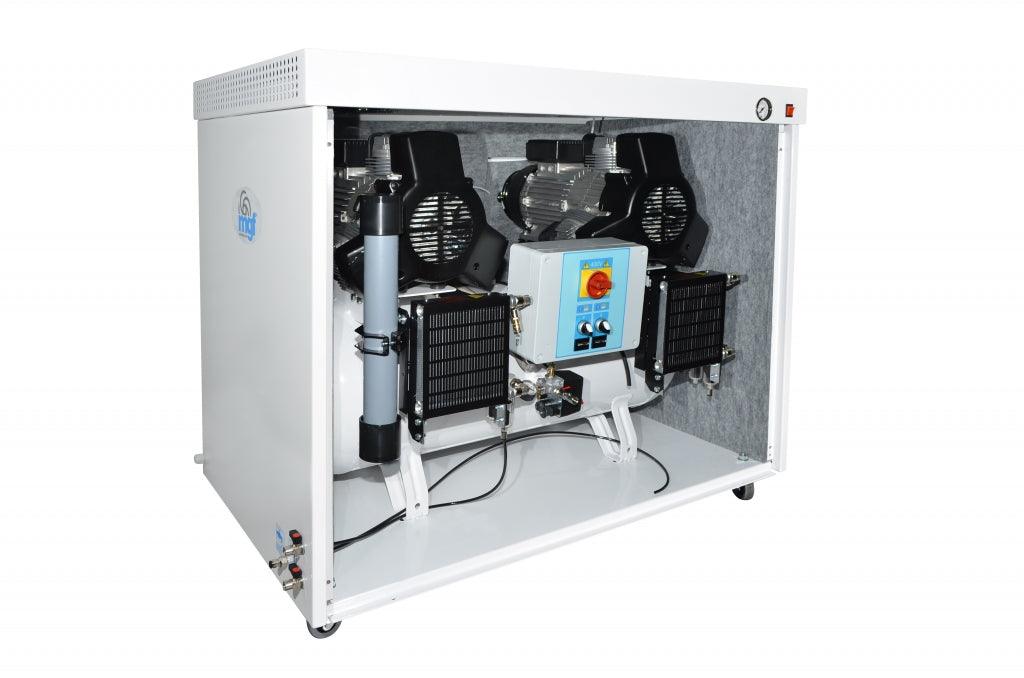

MGF CS100/50 Prime MT3 (400V) Tandem Cabinet Silenced With Dryer (c.f.m. @5Bar - 15.8, L/min. @5Bar - 450)
MGF CS100/50 Prime MT3 (400V) Tandem Cabinet Silenced With Dryer (c.f.m. @5Bar - 15.8, L/min. @5Bar - 450)
Regular price
£7,434.00
Regular price
£11,800.00
Sale price
£7,434.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HIGHLIGHTS:
- In Acoustic Cabinet, with Dryer
- Tandem 2.2+2.2 kW 400V - 450 l/min @ 5 Bar
- Internally Coated Receiver - 90 Lt
- Using PRIME technology: 70% duty, 56 dB(A), and low temperature output
- Maximum Pressure 10 Bar
- ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point, and Zero oil trace
- Integrated membrane dryer guaranteeing a dew point of -20°C at 5 Bar suitable for HTM 2022 compliance
- Double filtration system providing an air purity of 0.01 microns
- Suitable for dental, and laboratory applications
- HTM 2022 compliant (dryer and filtration required)
- All models utilise an after cooler
- OPTIONAL: with Dessicant Dryer -40° dew point (ISO 8573 1.2.1)
SPECIFICATION
Chairs - 9
c.f.m @5Bar - 15.8
L/min @5Bar - 450
Hp - 3+3
kW - 2.2 + 2.2
Bar - 10
Psi - 145
dB(A) - 56
Volt - 400
Receiver Size - 90Lt
Product L x W x H (mm) - 1245 x 725 x 1020
Kg - 220
Open Frame and Silenced Models
The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers. The silenced version, housed in a modern acoustic cabinet, can achieve noise levels as low as 56 dB(A).
All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 Bar providing higher working pressure (7 Bar) for general use applications.
Air Treatment Features- Aftercooler - reduce air temperature
- Dual filtration system - to 0,01 microns
- Membrane dryer - guarantees an average dewpoint of up to -20°C PDP at 5 bar
- Maintenance free - simple design
- Efficient - only requires the replacement of the pre filter elements
