MGF

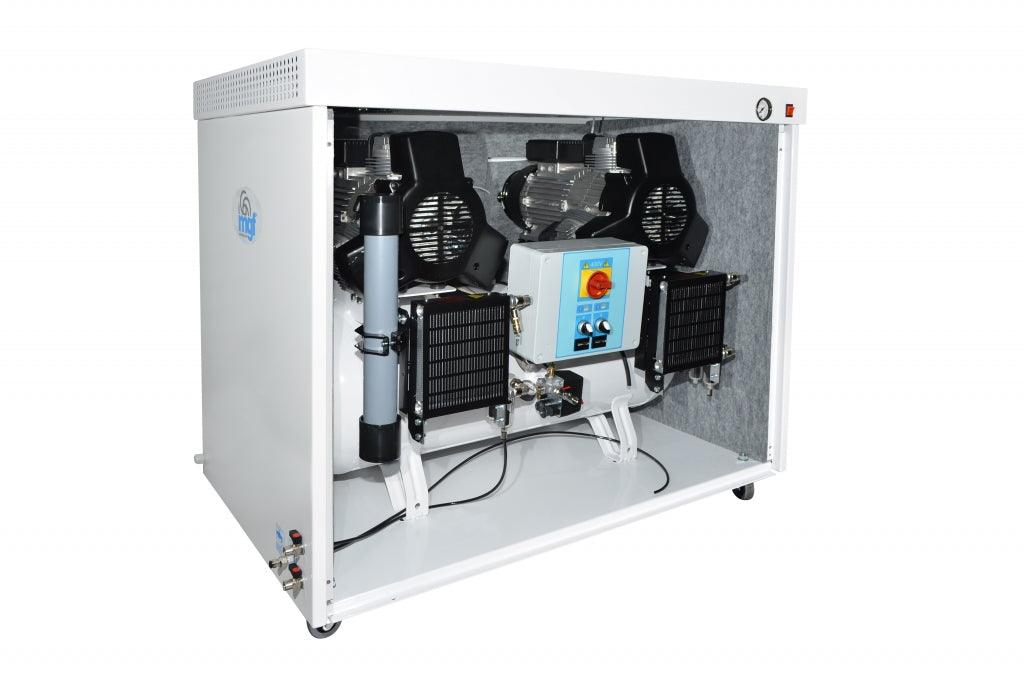

MGF CS100/50 Cabinet Silenced 3 Phase (c.f.m. @5Bar - 17.6, L/min. @5Bar - 500)
MGF CS100/50 Cabinet Silenced 3 Phase (c.f.m. @5Bar - 17.6, L/min. @5Bar - 500)
Regular price
£5,901.50
Regular price
£9,323.00
Sale price
£5,901.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HIGHLIGHTS:
- Open-Frame & silenced models
- Integrated membrane dryer options guaranteeing a dew point of -20 C at 5 Bar
- Suitable for dental, medical, food processing and laboratory applications
- HTM 2022 compliant (dryer and filtration required)
- All models utilise an after cooler
- Double filtration system providing an air purity of 0.01 microns
SPECIFICATION
Chairs - 8
c.f.m @5Bar - 17.6
L/min @5Bar - 500
Hp - 3+3
kW - 2.2 + 2.2
Bar - 10
Psi - 145
dB(A) - 56
Volt - 400
Receiver Size - 90Lt
Product L x W x H (mm) - 1245 x 725 x 1020
Kg - 220
Open Frame and Silenced Models
The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers. The silenced version, housed in a modern acoustic cabinet, can achieve noise levels as low as 54 dB(A).
All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 bar providing higher working pressure (8 bar) for general use applications.
