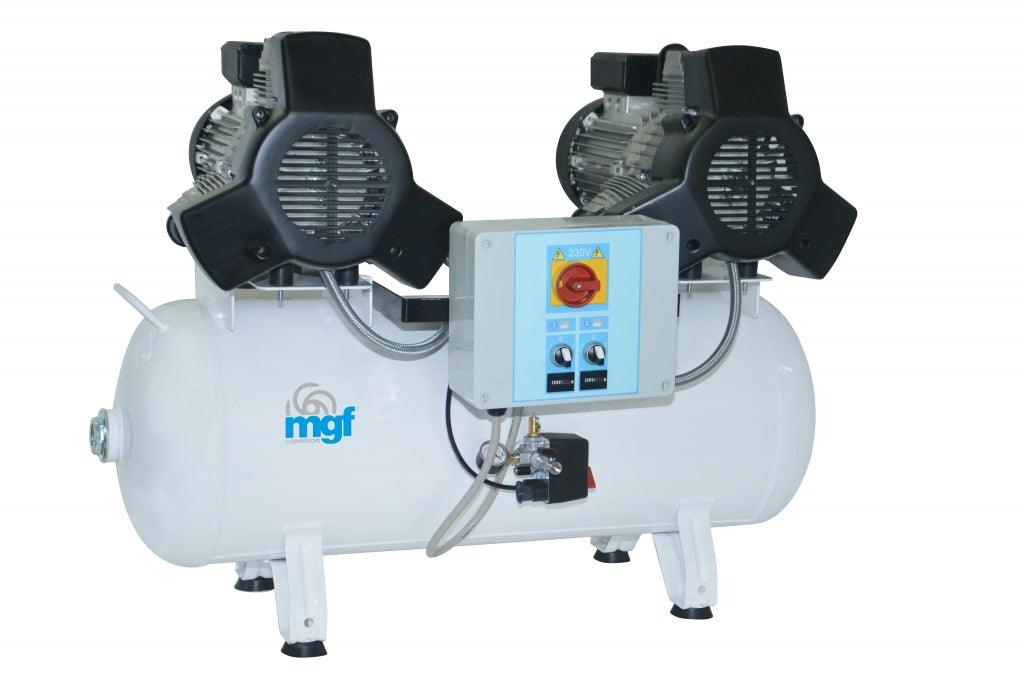

MGF 100/50 Tandem Prime T3 - 400V (c.f.m. @5Bar - 17.6, L/min. @5Bar - 500)
MGF 100/50 Tandem Prime T3 - 400V (c.f.m. @5Bar - 17.6, L/min. @5Bar - 500)
Regular price
£3,749.00
Regular price
£5,950.00
Sale price
£3,749.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HIGHLIGHTS:
-
Open-Frame
-
2.2+2.2 kW TANDEM - 500 l/min @ 5 Bar
-
Internally Coated Receiver - 90 Lt
-
Using PRIME technology: 70% duty, 69 dB(A), and low temperature output
-
Maximum Pressure 10 Bar
-
Suitable for laboratory and other applications where oil free and air quality is important
-
OPTIONAL: Cabinet version from 56 dB(A)
-
OPTIONAL: Integrated membrane dryer options guaranteeing a dew point of -20°C at 5 Bar for HTM 2022 Compliance
-
OPTIONAL: Double filtration system providing an air purity of 0.01 microns - models with dryer
SPECIFICATION
Chair- 9
c.f.m @5Bar - 17.6
L/min @5Bar - 500
Hp - 3+3
kW - 2.2 + 2.2
Bar - 10
Psi - 145
dB(A) - 69
Volt - 400
Receiver Size - 90Lt
Product L x W x H (mm) - 1100 x 600 x 820
Kg - 113
Open Frame and Silenced Models
The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers..
All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 Bar providing higher working pressure (8 Bar) for general use applications.
