• FINI PLUS 2210 (c.f.m. - 106, L/min. - 3000) - The Compressor Warehouse
1 1

Fini

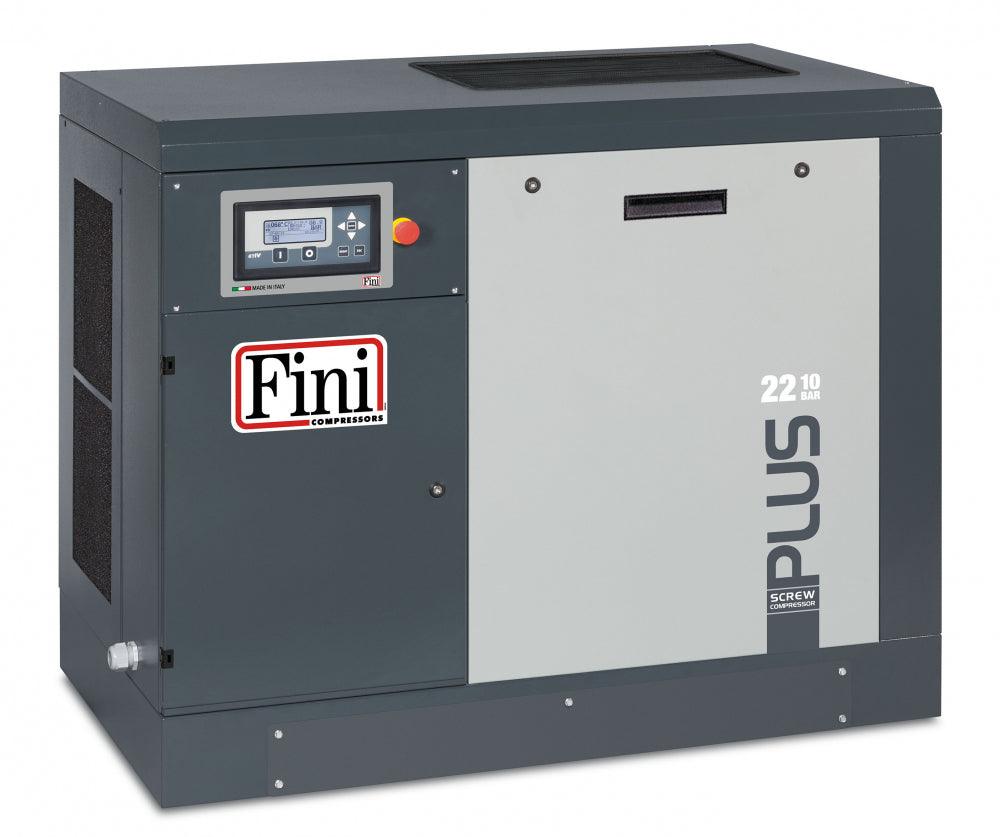

FINI PLUS 2210 (c.f.m. - 106, L/min. - 3000)

FINI PLUS 2210 (c.f.m. - 106, L/min. - 3000)

£6,510.00
£11,822.00 £6,510.00
Sale Sold out
Shipping calculated at checkout.

HIGHLIGHTS:

  • Compact design and very quiet operation - suitable for direct installation in the working environment with the minimum space requirement, for maximum convenience and reduced installation costs.
  • Controller with multi function backlight display
    • Pressure
    • Oil Temperature
    • Total working hours
    • Compressor status and Hours to next service
  • Advanced cooling system - The large surface area separate heat exchangers for the air and oil cooling, ensures lower operating temperature and lower air outlet temperatures.
  • Robust and reliable - The PLUS is designed for continuous use in tough conditions ensuring reliability and a very long life.
  • IE3 High efficiency Motors - Allowing reduced energy consumption
  • Advanced POLY-V drive system - Providing high efficiency with longer life when compared to standard V belts with much less deterioration in drive efficiency meaning more energy is transferred to the compressor for higher efficiency and lower power consumption.
  • Long life and reliability The PLUS benefits from state of the art manufacturing and over 50 years experience in the production of air compressors with most components designed and manufactured in-house
  • Flexible Range - 18.5kW - 22kW with free-standing cabinet with optional super sound proof attenuator.
  • 8 Bar, 10 Bar & 13 Bar - Versions available in the range
    SPECIFICATION
    kW - 22
    Hp - 30
    L/min - 3000
    m3/h - 180
    c.f.m - 106
    Bar - 10
    Psi - 145
    dB(A) - 680
    Outlet G (") - 3/4"
    Kg - 380
    Product L x W x H (mm) - 1350 x 800 x 1130

    ETIV

    Remote monitoring (on demand)

    GSM/GPRS/Ethernet/Wi-Fi module (for on-line compressor status, remote assistance, connection with PC, Smartphone and Tablet, connection between neighbour compressors).

      Controller with multi-function backlight LCD graphic display, the menu is drop down type. In the main screen are displayed:

      • Working pressure (offload/load);
      • Oil temperature;
      • Compressor status (stand-by, offload, load);
      • Fan status (off/on);
      • Date and time;
      • Hours remaining before maintenance;
      • Inverter use percentage.


      Master/slave function

      It is possible to connect up to 4 compressors for managing distribution of the workload in such a way to equalize the hours dynamically changing set pressures of the various compressors.

      High efficiency Motors

      The design of the PLUS compressors, including the high efficiency IE3 motors, has been fully focused on combining the different components that make up a perfect compressed air installation for a completely integrated, modular and functional system that combines maximum convenience with optimum energy efficiency.
