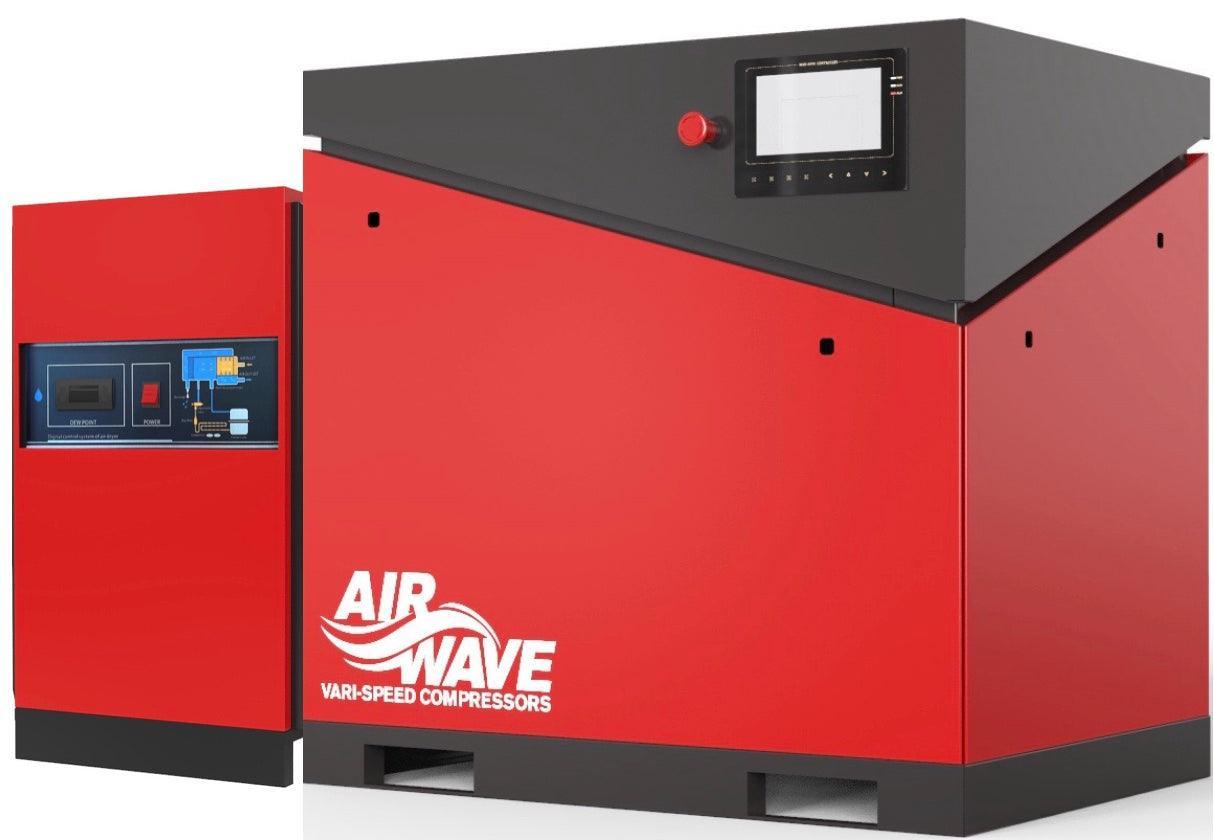

Airwave VARI-Speed, Variable Speed Compressor, 20hp/15Kw-400V, 83 CFM, 15 Bar Floor Mounted + Dryer, MK2

Specification as Follows SKU XL-20-EPMD-EMC-15.

Rotary Screw Pump Oil Lubricated (Air End)
100% Duty Factor
Installation Simple Plug and Play
Direct Drive Variable Speed Technology
Motor 20 hp – 15 kw Oil Cooled Permanent Magnet
Voltage 400/3/50 40 amp 3 Phase Supply
Soft Start, Low Start Up Amps
Latest Touch Screen, Advanced Monitoring System with Maintenance Warnings
7 Day Programable Start-Stop function
Electric Thermostatically Controlled Cooling System
Output 34-87 cfm @ 7 bar Free Air Delivered
Output 32-50 cfm @ 8 bar Free Air Delivered
Output 34-75 cfm @ 10 bar Free Air Delivered
Max Working Pressure 15 Bar
Tank Size - No
Low Component Count, Solid Seamless pipework
Outlet 3/4 BSP Female Thread
Dryer - Yes, Floor Mounted, Compressor To Dryer Connection Kit Included
Filters - Optional, 0.01 Oil Removal
dB(A) 65
2 Year Warranty T&Cs apply.

Revolutionary VARI-Speed Digital Controller

At the heart of the Airwave VARI-Speed Compressor lies the VARI-Speed digital controller. This innovative technology empowers users to easily adjust key parameters, allowing for precise control over air pressure and flow. The digital controller not only simplifies operation but also offers advanced monitoring and maintenance alarms. Additionally, a built-in 7-day timer ensures the compressor aligns with your specific scheduling needs, making it a smart choice for businesses with varying operational hours.

Effortless Servicing and User-Friendly Design

Airwave Compressors have always prioritized user-friendliness. The VARI-Speed Compressor continues this tradition with simple and intuitive instructions for servicing. Keeping your equipment in top shape is a breeze, ensuring that your business operations run smoothly.

Energy-Efficient Variable Speed Drive (VSD)

One of the standout features of this compressor is its Variable Speed Drive (VSD) technology. By adjusting the motor speed to match air demand, the VARI-Speed Compressor can save up to 30% of system energy costs. With various VSD models available to cater to your specific air requirements and working conditions, you have the flexibility to optimize energy consumption.

Enhanced Efficiency with Unique Air-End Design

The Airwave Compressors' unique air-end design is a game-changer. It significantly increases efficiency and extends the working lifetime of the compressor. The oversized pump, also known as the air-end, is the central component where the actual compression takes place. This well-engineered air-end ensures a steady, non-pulsating airflow, setting it apart from reciprocating piston compressors.

Acoustic Cabinet for Reduced Noise

To provide a more comfortable working environment, the Airwave VARI-Speed Compressor is encapsulated within an acoustic cabinet. This design effectively reduces noise levels, and all panels can be effortlessly removed for servicing. The compressor is also mounted on a receiver, strategically chosen to minimize the overall footprint. A large capacity oil cooler, combined with an electrical thermostatically controlled fan, helps maintain optimal operating temperatures even in warm climates, all while reducing power consumption.

Electric Thermostatically Controlled Cooling

Efficient cooling is vital to compressor longevity. The Airwave VARI-Speed is equipped with an electric thermostatically controlled cooling system, ensuring optimal operating temperatures at all times.

Enhanced Air Quality with Optional Refrigerated Dryer

For businesses that require clean, dry air, the optional Refrigerated Dryer with oil removal filtration is available. Unlike some competitors who incorporate this within the compressor cabinet, Airwave Compressors have recognized the importance of separate placement, ensuring that you never install a freezer next to an oven. This thoughtful design ensures the quality of your compressed air.

Built to Last

Crafted to withstand the toughest working conditions, this compressor boasts a maximum working pressure of 10 bar. Its solid seamless pipework and low component count are designed for durability and reliability, ensuring it stays operational for years to come.
