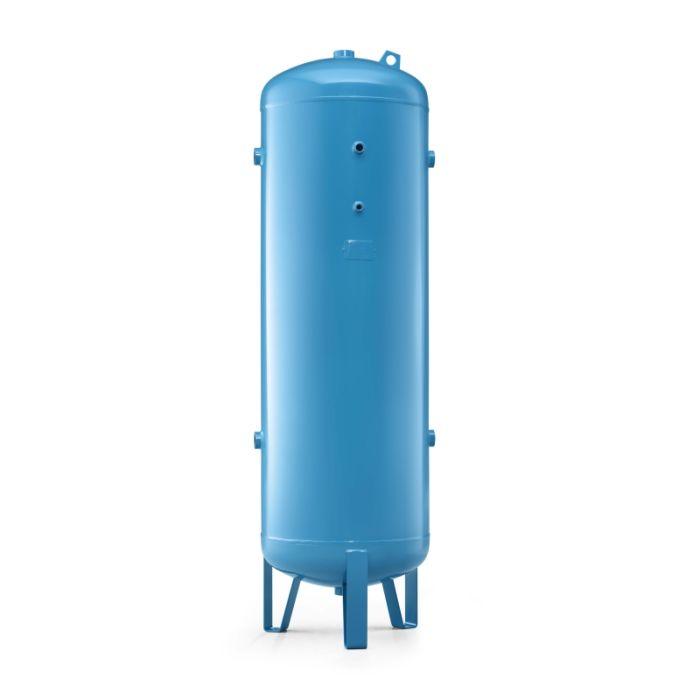

ABAC Vertical Air Receiver 3000Ltr - Painted

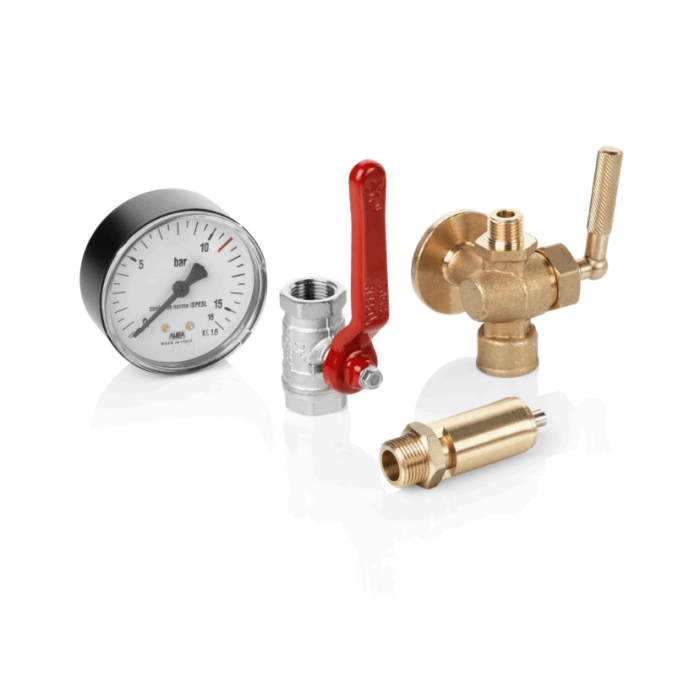

ertical Air Receiver 3000 Ltr 11.5bar painted + connection kit

Painted tanks are recommended in most cases, when the air tank is not subjected to extreme climatic conditions and perfectly clean air is not a mandatory prerequisite. The paint is used to protect against external corrosion.

How to select the size of my receiver?

There is no one rule that fits all as some applications require larger air receivers because of the process. However, two rules of thumb that can help to finetune:

• Your air receiver capacity should be at least 1/4 of your free air delivery expressed in m³/min.
• Base yourself on the compressor’s motor power and calculate the capacity (Motorpower in HP x 30).

Example: If you install a 10HP compressor, your receiver capacity should be minimally 300 Ltr.

Correctly sizing your air receiver brings following benefits for your compressors’ operations:

• Less waste during unloading period
• Overall smoother operation
• Avoid mechanical stress on several components
