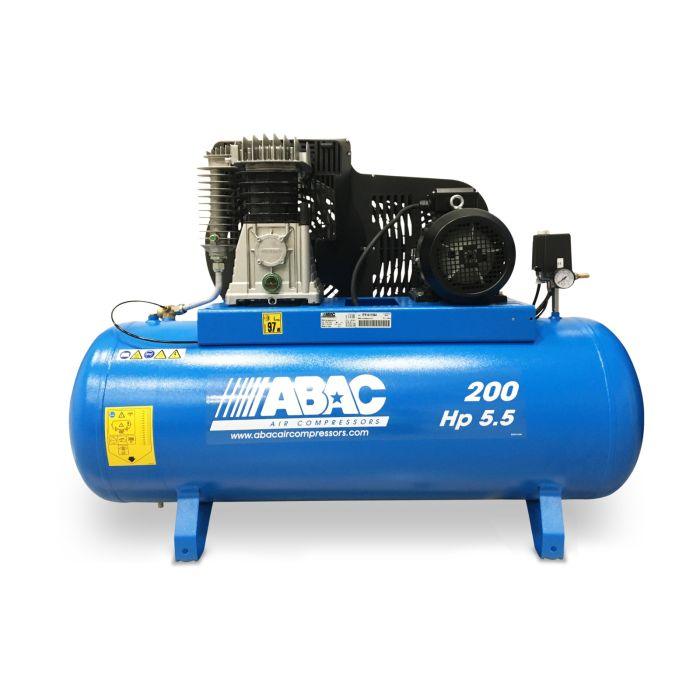

ABAC Pro A5900B 200 FT5.5 5.5Hp, 200Ltr (400V) (c.f.m. - 23, L/min. - 651)
ABAC Pro A5900B 200 FT5.5 5.5Hp, 200Ltr (400V) (c.f.m. - 23, L/min. - 651)
PRO B5900B 200 FT5.5 5.5Hp, 200Ltr (400v)
Two stage belt driven compressors.
A double compression providing bigger flows and higher pressure.
In two stage compressors, the air is compressed two times. The ABAC range has highly reliable components and is seen as proven technology. Furthermore, the durability is combined with the user comfort you can expect from this type of high level performance. As the compressors are providing bigger airflows and they are achieving higher operating pressures, it makes them suitable for most professional and semi-industrial applications.
Standard running 2 stage belt driven compressors running at lower speed. Lower speed stands for more user comfort and more durability. The noise levels are lower than on the equivalent standard speed units, and lower temperatures are created. This reduces the wear and increases the reliability. Thanks to these characteristics, these compressors are extremely suitable for more frequent and heavy duty applications in medium and large workshops.
Features and benefits :-

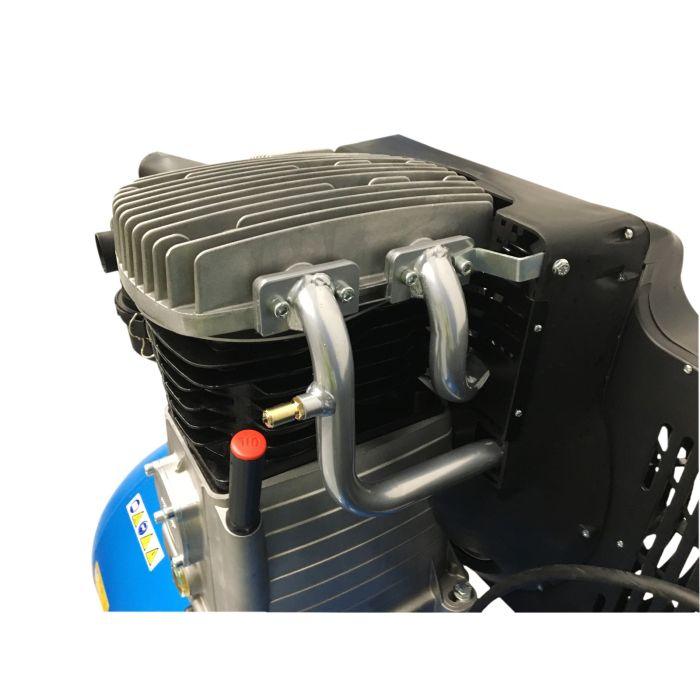

- Two stage compressor pump with cast iron cylinder for longer life
- Finned aftercooler for lower temperature compressed air
- Proven and well established technology
- Clear oil level indicators
- Lower speed reduces the wear and increases the lifetime
- Ergonomic moulded belt guard for increased cooling
- Heavy duty filters as standard
Item number | 4116019759 |
---|---|
Product Name | PRO B5900B 200 FT5.5 UK |
Oil Free | No |
Air Displacement (cfm) | 22.9 |
Free Air Delivery (cfm) | 17.7 |
Air hose attachment (inch) | 1/2" |
Suitable for | Professional |
Horsepower (HP) | 5.5 |
Power (kW) | 4 |
Brand | ABAC |
Air receiver capacity (Lt) | 200 |
Starter | Direct on line, Electric |
Revolutions per minute (RPM) | 1400 |
Type | 2 stage, Belt driven |
Number of cylinders | 2 |
Weight (kg) | 161 |
Width (mm) | 1580 |
Mobility | Stationary |
Depth (mm) | 580 |
Height (mm) | 1150 |
Voltage (V) | 400 |
Integrated dryer | No |
Frequency (Hz) | 50 |
Phase | 3 |
Maximum air pressure (bar) | 11 |
Cooling type | Air |
Sound level LpA at 4m distance | 78 |
Sound level LwA | 98 |
