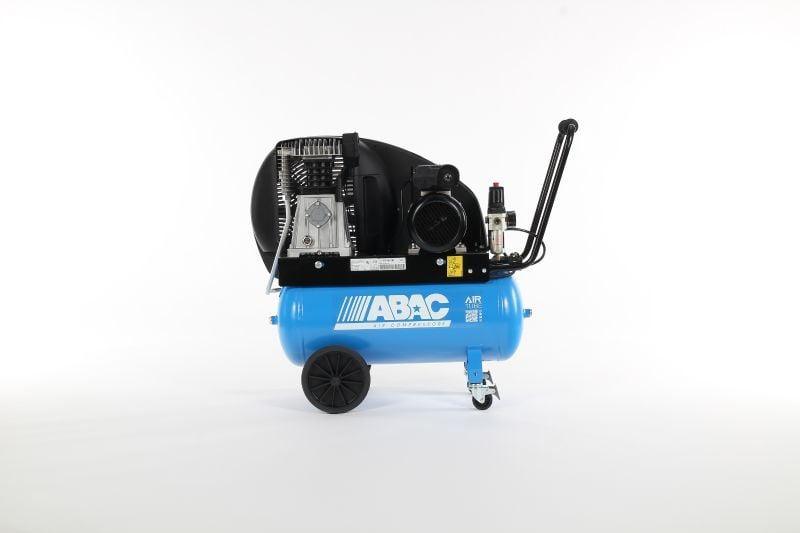

ABAC EXp A29B 50 CM3 UK (c.f.m. - 10.9, L/min. - 320)
ABAC EXp A29B 50 CM3 UK (c.f.m. - 10.9, L/min. - 320)
ABAC EXpert Range: Uncompromising Quality and Performance
Explore the pinnacle of belt driven air compressor technology with the ABAC EXpert range. Crafted for those who demand nothing but the best, this series is the epitome of reliability and superior design. We designed the EXpert compressors for customers with high standards, providing exceptional performance for those seeking top-quality products.
Experience the versatility of a portable air compressor, the dependability of a stationary one, or the space-saving design of a vertical air compressor, all tailored to meet your specific needs.
The ABAC EXpert range offers comfort and easy use: the perfect oil-lubricated piston compressor for extended use. The EXpert series is famous for paying attention to details. It combines functionality with user-friendly design. This makes it easy to integrate into any professional setting.
Expert compressors use advanced technology to provide efficient and reliable solutions for various industries, including automotive, woodworking, and manufacturing.
Choosing the ABAC EXpert range means getting a top-notch compressor that looks good and works great in every way. A range designed for those who expect the highest standards and are not willing to compromise on quality or performance.
Features and Benefits :-
- Ergonomically designed belt guards providing optimal cooling
- Cast Iron cylinder blocks fitted as standard
- Aftercoolers fitted as standard for reduced operating temperatures
- Low operating speed for increased longevity
- Filter regulators fitted as standard with twin quick release coupling for efficient / multiple tooling connection
- Handle and wheel kit supplied separately for maximum flexibility (static or mobile)
- Additional safety thanks to the dual lockable front swivel wheels
- Ergonomic, robust extended rubber handle for increased user comfort & user health and safety
- Motor overload switches fitted standard for increased protection
- User-friendly Clear pump oil level indicators
- Large and easy to operate drain valve
- 200mm robust rear wheels for multiple terrains
- Three phase red plug fitted as standard
- Extended warranty and full machine technical information available thanks to our new ABAC Air Tube APP
Technical Information
Item number | 4116028561 |
---|---|
Product Name | EXP A49B 200 CT4 UK |
Oil Free | No |
Air Displacement (cfm) | 19.5 |
Free Air Delivery (cfm) | 13.1 |
Product category | Piston compressors |
Suitable for | Professional |
Horsepower (HP) | 4 |
Power (kW) | 3 |
Brand | ABAC |
Air receiver capacity (Lt) | 200 |
Starter | Direct on line |
Revolutions per minute (RPM) | 1300 |
Type | Belt driven |
Number of cylinders | 2 |
Weight (kg) | 121 |
Width (mm) | 1422 |
Mobility | Stationary |
Depth (mm) | 572 |
Height (mm) | 1042 |
Voltage (V) | 400 |
Integrated dryer | No |
Frequency (Hz) | 50 |
Phase | 3 |
Maximum air pressure (bar) | 10 |
Cooling type | Air |
Sound level LpA at 4m distance | 76 |
Sound level LwA | 96 |
Used for | Piston compressor |
