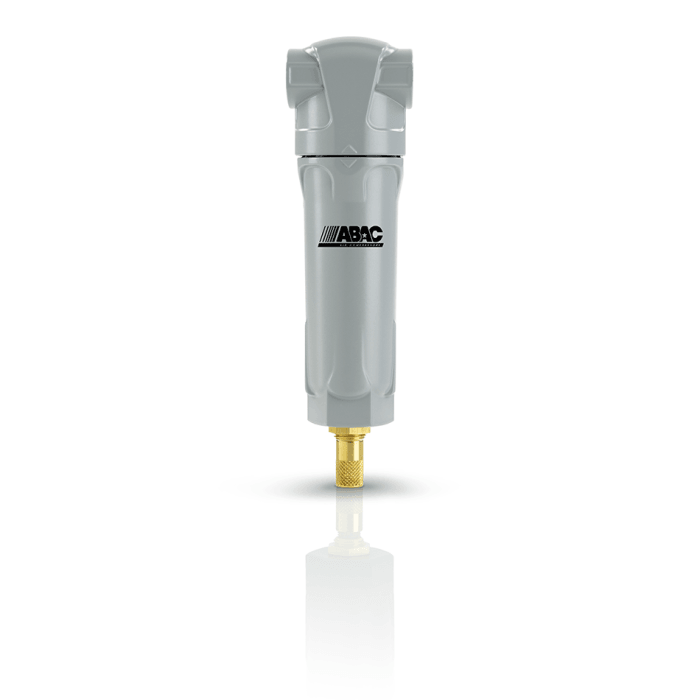

ABAC 1/2" FV 85 Activated Carbon Filter - Oil Vapour and Odour, 0.003mg/m³ Oil (50 cfm)
ABAC 1/2" FV 85 Activated Carbon Filter - Oil Vapour and Odour, 0.003mg/m³ Oil (50 cfm)
Couldn't load pickup availability
ABAC 1/2" FV 85 Activated Carbon Filter - Oil Vapour and Odour :- 0.003mg/m³ Oil (50 cfm)
V FILTER RANGE
Activated carbon filter for removal of oil vapour and hydrocarbon odours with a maximum remaining oil content of 0.003 mg/m3 (0.003 ppm).
Key benefits
• Certified to ISO 12500. ISO 8573-2010. CE.
• Max pressure drop saturated/wet 0.125bar.
• Better performance under demanding conditions.
• Innovative and optimised design with improved airflow.
• Unequalled performance in the market delivering the highest purity.
• Extended service hours to 8000 hours or one year.
• Reliable sealing.
• Easy to service.
1. Dead stop head to bowl connection with lock indicator ensures effective sealing and guaranteed safety closure.

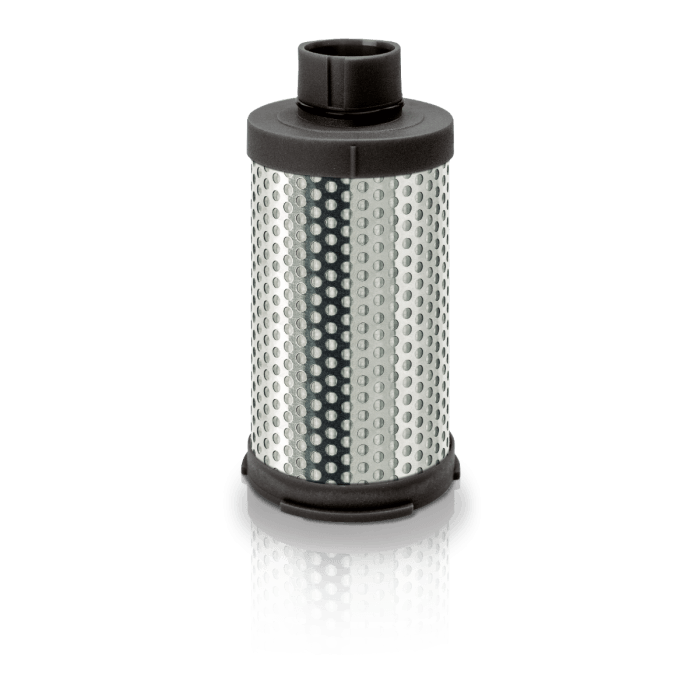

2. Push fit elements for easy servicing and removal.
3. Profiled bowl design and hexagonal profile locator.
4. Corrosion protection housing and caps.

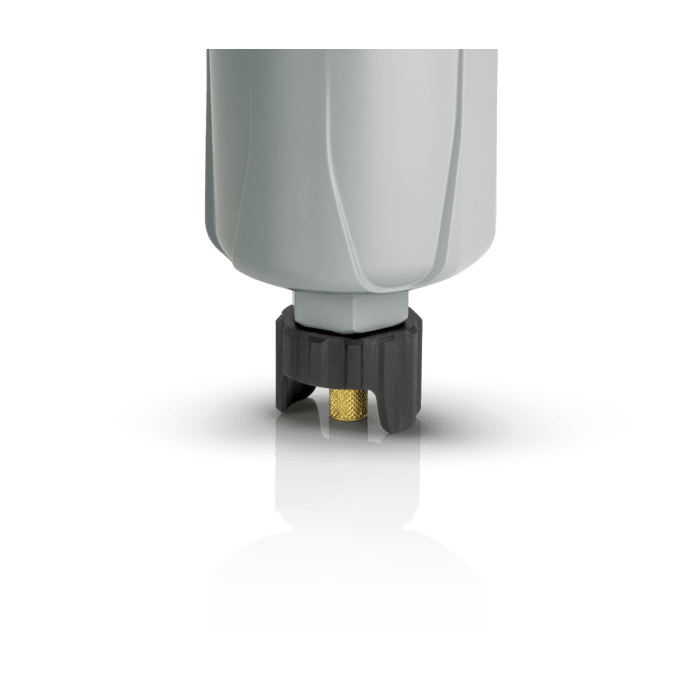

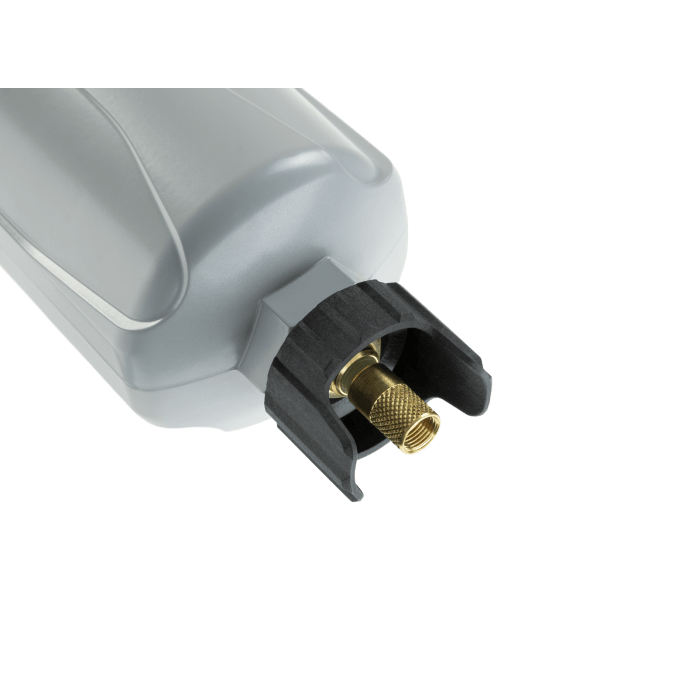

5. Unique designed adaptor for removal of drain from the bowl without opening the filter.
6. DPD optional extra.
| Item number | 8102855101 |
|---|---|
| Brand | ABAC |
| Compressed air connection | 1/2" |
| Nominal Capacity (cfm) | 50 |
| Element change recommendation | After 1,000 hours or 6 months |
| Precede with | G and C Filter |
| Used for | Air treatment |
