ABAC 1/2" FC 85 High Efficiency Coalescing Filter - 0.01mg/m³ Oil, 0.01 micron Particles (50 cfm)
ABAC 1/2" FC 85 High Efficiency Coalescing Filter - 0.01mg/m³ Oil, 0.01 micron Particles (50 cfm)
Couldn't load pickup availability
ABAC 1/2" FC 85 High Efficiency Coalescing Filter - 0.01mg/m³ Oil, 0.01 micron Particles (50 cfm)
C FILTER RANGE
High-efficiency coalescing filters, removing solid particles, liquid water and oil aerosol.
Total Mass Efficiency: 99.9%, For optimum filtration, a C filter should be preceded by a G filter at all times.
Key benefits
• Certified to ISO 12500. ISO 8573-2010. CE.
• Max pressure drop saturated/wet 0.125bar.
• Better performance under demanding conditions.
• Innovative and optimised design with improved airflow.
• Unequalled performance in the market delivering the highest purity.
• Extended service hours to 8000 hours or one year.
• Reliable sealing.
• Easy to service.

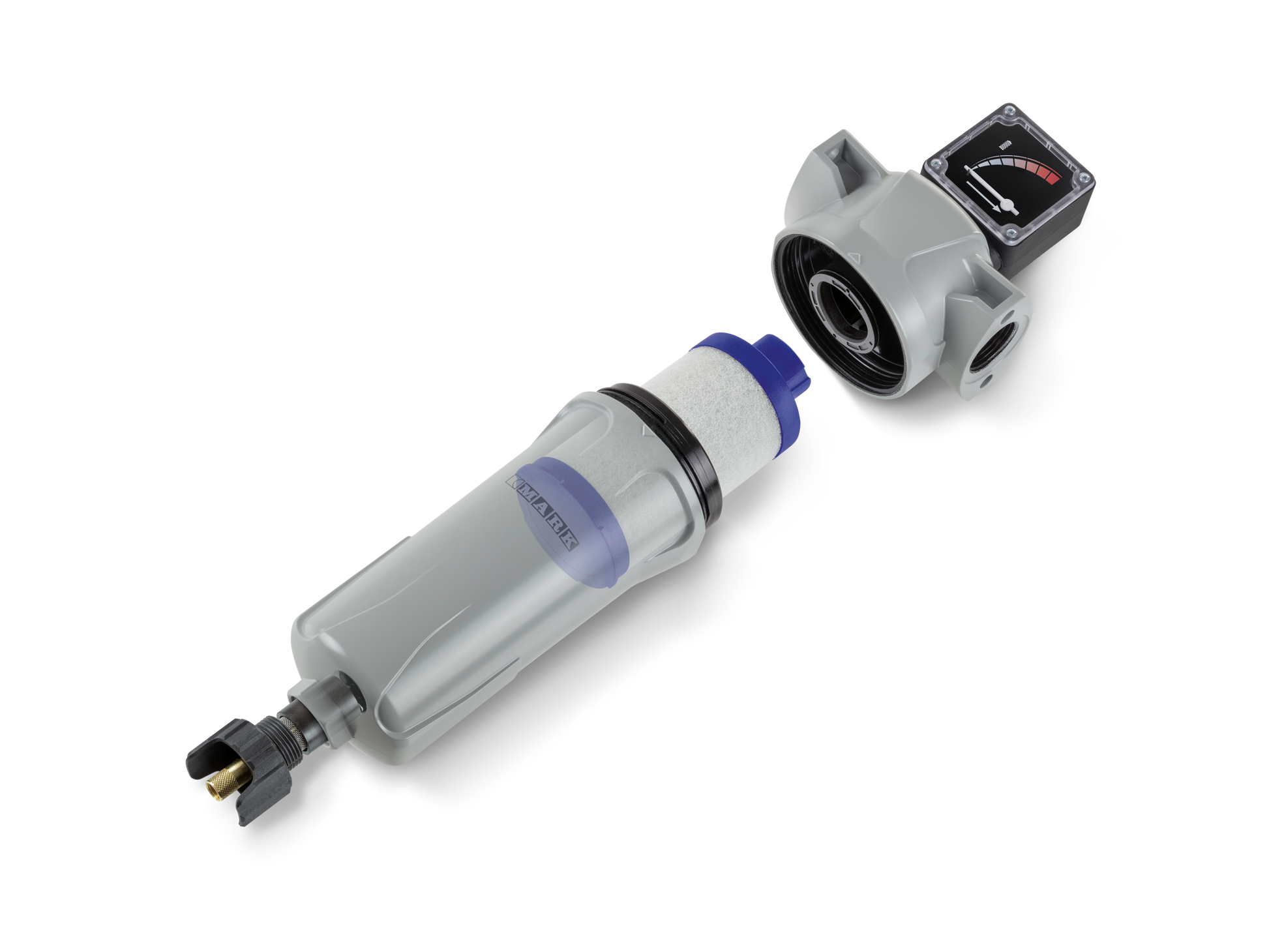

1. Dead stop head to bowl connection with lock indicator ensures effective sealing and guaranteed safety closure.
2. Push fit elements for easy servicing and removal.
3. Profiled bowl design and hexagonal profile locator.
4. Corrosion protection housing and caps.

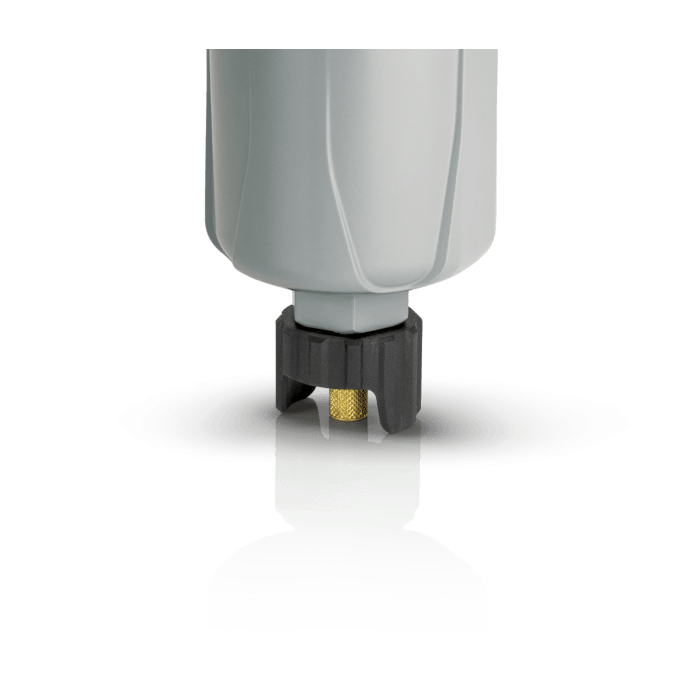

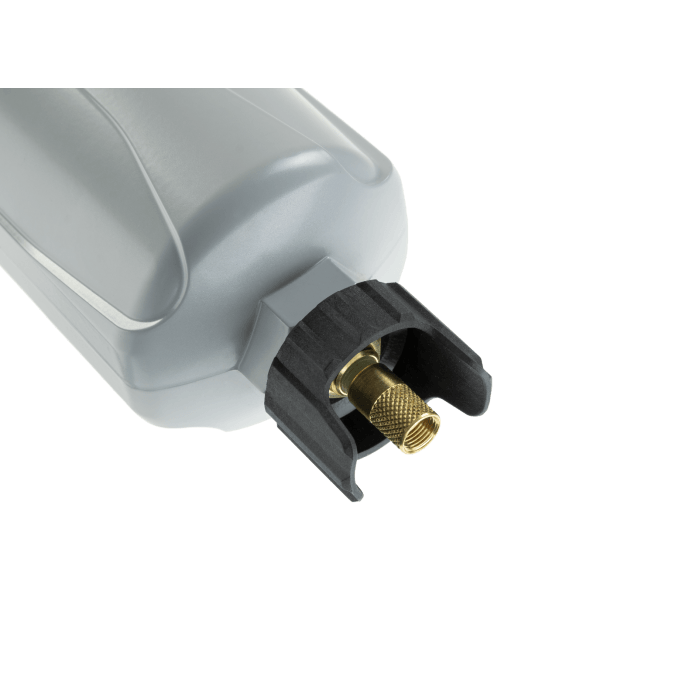

5. Unique designed adaptor for removal of drain from the bowl without opening the filter.
6. DPD optional extra.
| Item number | 8102855085 |
|---|---|
| Brand | ABAC |
| Compressed air connection | 1/2" |
| Product category | Filter |
| Nominal Capacity (cfm) | 50 |
| Element change recommendation | After 8,00 hours or 1 year |
| Precede with | G Filter |
| Used for | Air treatment |
