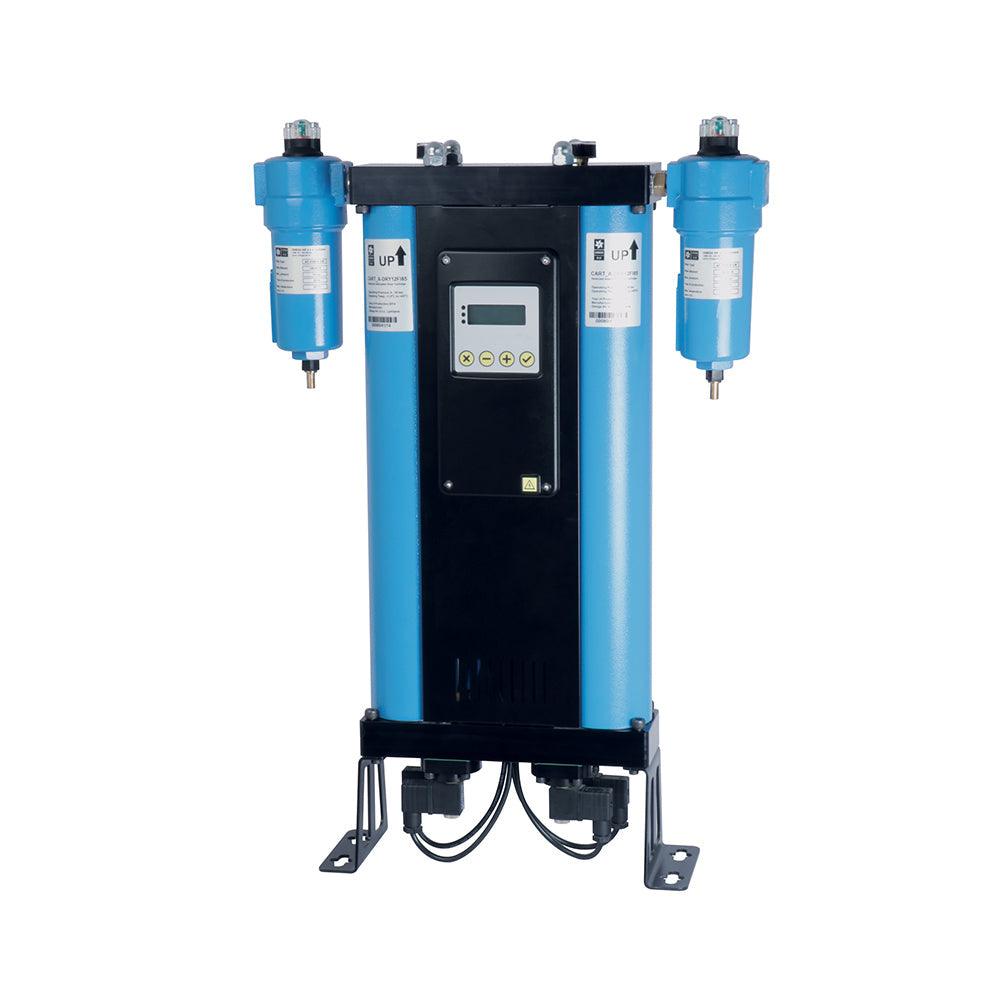

A-DRY24 Adsorption Dryer (c.f.m. - 14)
A-DRY24 Adsorption Dryer (c.f.m. - 14)
Regular price
£1,710.00
Regular price
£2,849.00
Sale price
£1,710.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
OMEGA ADSORPTION DRYER
OMEGA A-DRY 24 Heatless regenerated adsorption dryer
- Design for continuous separation of water vapour
- Operation of the dryer requires two columns operated alternately.
- Adsorption takes place under pressure in the first column while the second column regenerates with a portion of already dried compressed air at ambient pressure.
- Dryers consists from upper and lower control block, controller with LED display and two columns filled with desiccant.
- Springs in the columns make sure that the desiccant beads will not move during operation.
- Proven robust design enables efficient and reliable operation, fast installation and simple maintenance.
- DRYER RATING ACCORDING TO ISO8573-1
SPECIFICATION
L/min - 396
c.f.m - 14
Bar - 4-16
Outlet G (") - 3/8"
Product L x W x H (mm) - 130 x 480 x 1105
Kg - 19
PSI - 58-234
Motor Volt - 230V 50/60 Hz
Share
No reviews
A-DRY adsorption dryers have been designed for continuous separation of water vapour from compressed air thus reducing dew point. Operation of the dryer requires two columns operated alternately. Adsorption takes place under pressure in the first column
while the second column regenerates with a portion of already dried compressed air at ambient pressure. Dryers consists from upper and lower control block, controller with LED display and two columns filled with desiccant. Springs in the columns make sure that the desiccant beads will not move during operation. Proven robust design enables efficient and reliable operation, fast installation and simple maintenance.
