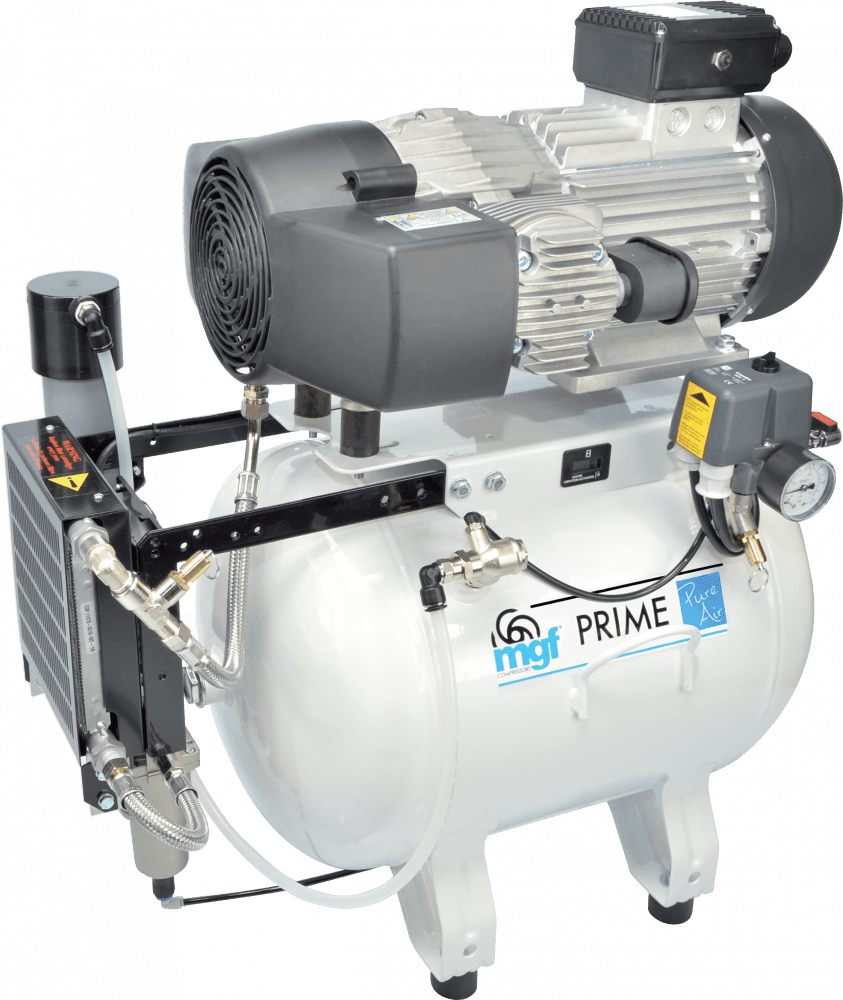

MGF 50/15 Prime M & Dryer (c.f.m. @5Bar - 5.4, L/min. @5Bar - 152)
MGF 50/15 Prime M & Dryer (c.f.m. @5Bar - 5.4, L/min. @5Bar - 152)
Regular price
£2,391.00
Regular price
£3,795.00
Sale price
£2,391.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HIGHLIGHTS:
- Open-Frame with dryer
- 1.5 kW - 152 l/min @ 5 Bar
- Internally Coated Receiver - 40 Lt
- Using PRIME technology: 70% duty, 65 dB(A), and low temperature output
(for continuous requirement 60 l/min @ 7 Bar, for higher requirement look at the X-line range) - Maximum Pressure 10 Bar
- ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point, and Zero oil trace
- Suitable for laboratory and other applications where oil free and air quality is important
- Integrated membrane dryer guaranteeing a dew point of -20°C at 5 Bar for HTM 2022 Compliance
- OPTIONAL: Cabinet version from 50 dB(A)
- OPTIONAL: Double filtration system providing an air purity of 0.01 microns - models with dryer
SPECIFICATION
Chairs - 3
c.f.m @5Bar - 5.4
L/min @5Bar - 152
Hp - 2
kW - 1.5
Bar - 10
Psi - 145
dB(A) - 66
Volt - 230
Receiver Size - 40Lt
Product L x W x H (mm) - 710 x 410 x 770
Kg - 50
