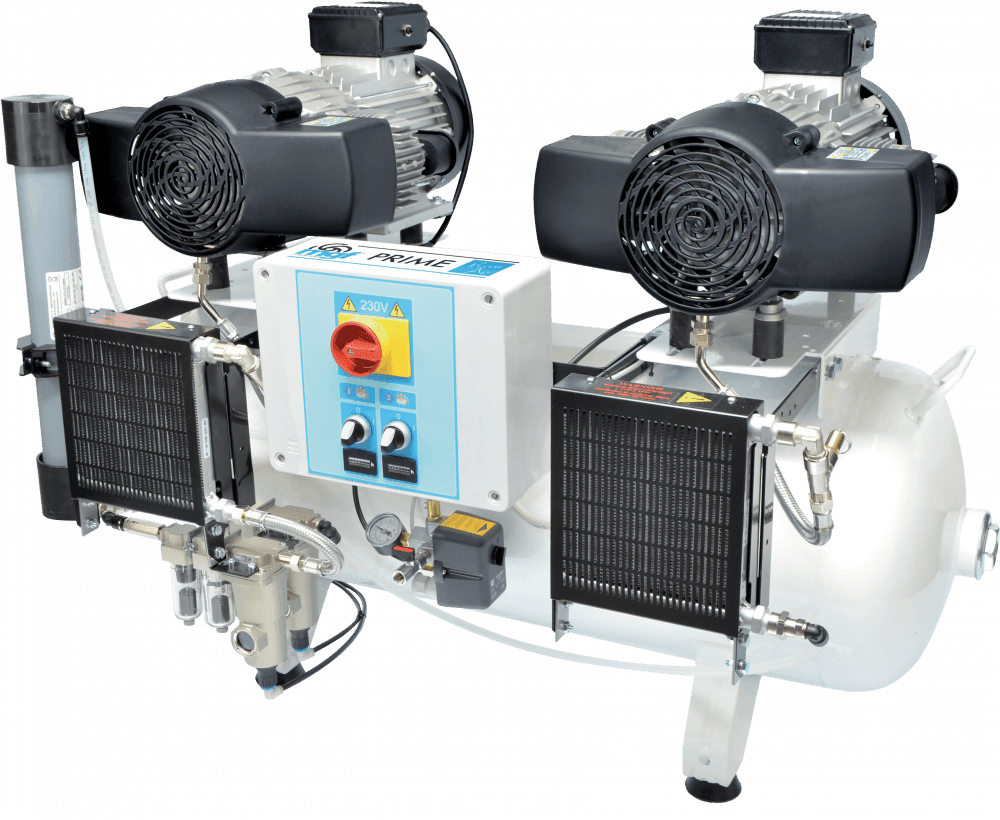

MGF 100/50 Tandem Prime M With Dryer (c.f.m. @5Bar - 15.8, L/min. @5Bar - 450)

MGF 100/50 Tandem Prime M With Dryer (c.f.m. @5Bar - 15.8, L/min. @5Bar - 450)

£5,569.00
£8,840.00 £5,569.00
Sale Sold out
Shipping calculated at checkout.

HIGHLIGHTS:

  • Open-Frame with Dryer
  • 2.2+2.2 kW TANDEM - 450 l/min @ 5 Bar
  • Internally Coated Receiver - 90 Lt
  • Maximum Pressure 10 Bar
  • Using PRIME technology: 70% duty, 69 dB(A), and low temperature output
  • ISO 8573.1 Class 1-3-1 - Particles below 0.1 micron, -20 Degree dew point, and Zero oil trace
  • Suitable for laboratory and other applications where oil free and air quality is important
  • Integrated membrane dryer guaranteeing a dew point of -20°C at 5 Bar for HTM 2022 Compliance
  • OPTIONAL: with Dessicant Dryer -40° dew point (ISO 8573 1.2.1)
  • OPTIONAL: Cabinet version from 56 dB(A)
  • OPTIONAL: Integrated membrane dryer options guaranteeing a dew point of -20°C at 5 Bar for HTM 2022 Compliance
  • OPTIONAL: Double filtration system providing an air purity of 0.01 microns - models with dryer
    SPECIFICATION
    Chair- 9
    c.f.m @5Bar - 15.8
    L/min @5Bar - 450
    Hp - 3+3
    kW - 2.2 + 2.2
    Bar - 10
    Psi - 145
    dB(A) - 69
    Volt - 230
    Receiver Size - 90Lt
    Product L x W x H (mm) - 1100 x 630 x 820
    Kg - 118

    Open Frame and Silenced Models

    The unrivalled and comprehensive range of oil free compressors are extremely robust, efficient and are designed for demanding applications. Our featured range is available in both silenced and standard configuration, with or without membrane dryers.

    All models utilise the innovative PRIME pump of very efficient construction, producing higher air output with a maximum air pressure of 10 bar providing higher working pressure (8 bar) for general use applications.

    Air Treatment Features

    • Aftercooler - reduce air temperature
    • Dual filtration system - to 0,01 microns
    • Membrane dryer - guarantees an average dewpoint of up to -20°C PDP at 5 bar
    • Maintenance free - simple design
    • Efficient - only requires the replacement of the pre filter elements
